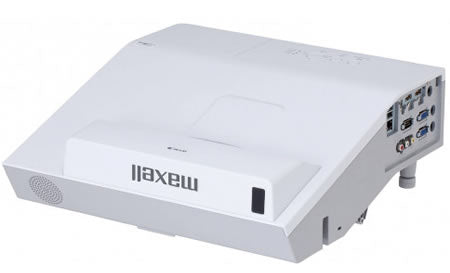

Maxell MCAW3006 LCD HD Ultra Short Throw Projector No Remote

OPTICAL
LCD Panel 0.59" (1.5cm) P-Si TFT x 3
Resolution WXGA (1280 x 800)
Brightness CP-AW3005: 3300 Lumens (Normal Mode)/2200 Lumens (Eco Mode)
Contrast ratio 10,000:1
Lens Powered focus, Digital zoom x 1.35
Lamp wattage 250W
Lamp life AW3005: Up to 6,000 hours
Diagonal display size 60~100" (152~254cm)
Keystone correction Fixed 4.6:-1 upward shift
Distance to width ratio (:1) 0.3
Number of colours 8 Bit/colour, 16.7M colours

COMPATIBILITY
Computer native WXGA
Composite/S-Video NTSC, PAL, SECAM, PAL-M, PAL-N, PAL (60Hz), NTSC4.43
Component Video/HDMI Video 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz

FEATURES
Speaker 16W
Image Picture modes (DICOM simulation, photo), HDCR (High Dynamic Contrast
Range), Accentualizer technology
Audio Standby Audio, Audio pass through
Network
Projector Control, Screen Transfer, New Network Setting OST, Infrastructure Mode (Wireless LAN), Adhoc Mode (Wireless LAN),
PJLink™ , e-Mail (SMTP), Schedule (SNTP), SNMP Management (SNMP),
My Image, Messenger, Campus notifica tion system, Network bridge, AMX Device Discovery, Crestron™ RoomView®, Projector web control

Security systems Password/My Screen Password, PIN lock, Key lock Installation
Keystone vertical/horizontal, Perfect Fit (corner fit), Perfect Fit memory
Eco Saver mode, Intelligent eco mode, ImageCare
™, Filter cleaning cycle
Other Auto altitude mode, Altitude (up to 10,000ft), Cloning function

SOFTWARE
PC software
LiveViewer for Win (ver.6.21), LiveViewer for Mac (ver. 1.02.1024),
Projector Management Application (ver.7.18),
Projector Control
Application (ver.4.13), Projector Image Tool (ver.3.2), Projector Messenger Tool (ver.1.5)
Smart Device Apps Projector Quick Connection (for iOS & Android)

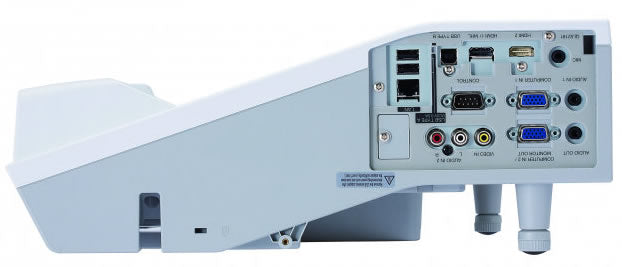

CONNECTIONS
Digital input 2 x HDMI
Computer input 2 x 15-pin Mini D-sub
Monitor output 1 x 15-pin Mini D-sub
Video input 1 x RCA composite
Audio input 1 x stereo mini jack, 1 x pair RCA (L/R), 1 x microphone
Audio output 1 x stereo mini jack
USB 2 x type A (PC-less presentation or wireless adapter)
1 x type B (USB display or USB mouse control)
Control 1 x 9-pin D-sub for RS-232C control
Wired network 1 x RJ-45
Wireless network Optional wireless adapter required

POWER
Power supply 100-120V/220-240V, auto switching
Power Consumption/Standby 350W/<0.35W (AC 220-240V)

PHYSICAL
Dimensions (W x H x D) 377 x 136 x 360mm (excluding feet and extrusions)
Weight 4.3kg
Noise level 30dB (Eco Mode)/37dB (Normal Mode)
Operating temperature 0~40°C
Filter Hybrid (up to 4000 hours)

CERTIFICATION
UL/cUL, FCC Part15 class B, AS/NZS CISPR22 class B, CE, ROHS, GOST-R

ACCESSORIES SUPPLIED
Remote control with batteries (HL03033), RGB cable, Power cord, Cable cover, Wireless USB adapter cover,
Manual CD, Application CD, User manual (concise), Wall mount (HAS-WM03)

OPTIONAL ACCESSORIES
Remote control R020F
Replacement lamp AW3005: DT01411
USB wireless adapter USB-WL-11N
Table top mount TT-03
Wall mount HAS-WM05
