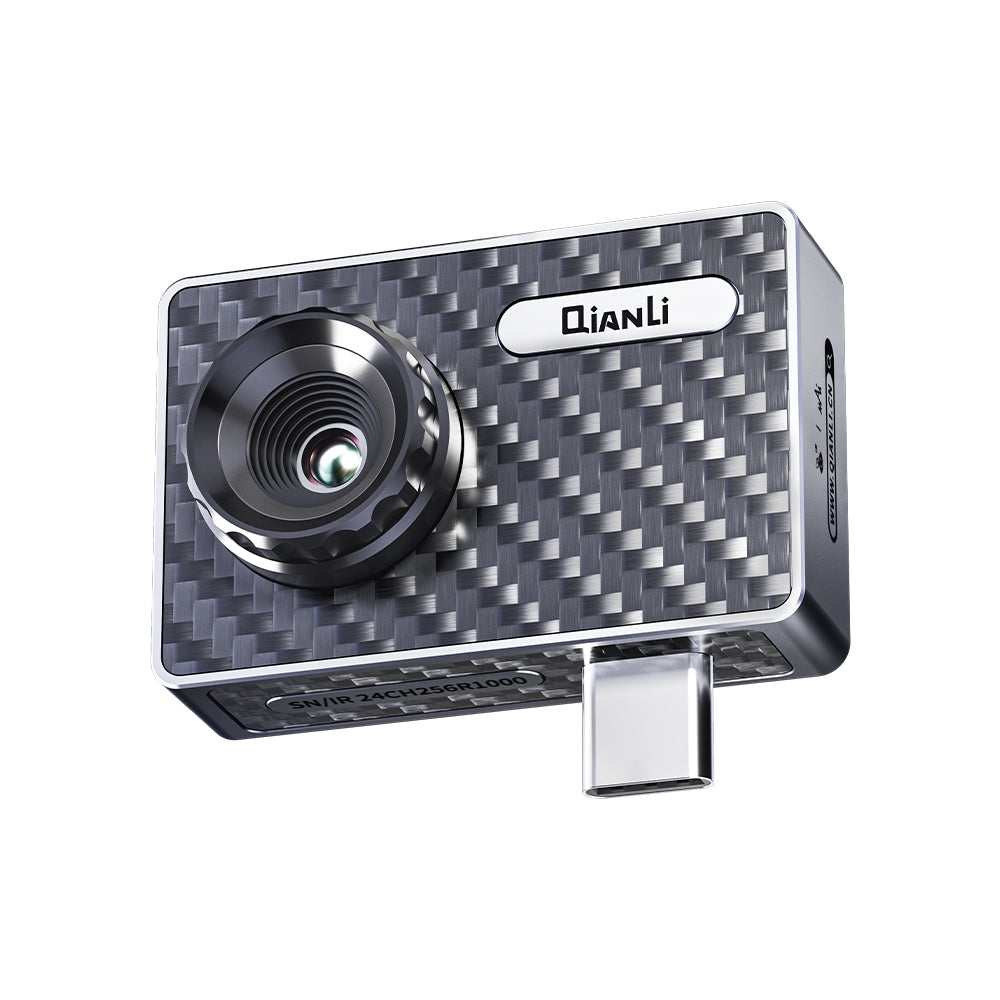

QIANLI Fire Eye Pro lnfrared Thermal Camera

Features:

- Android Type-c connector.

- No PC required, plug and use, aluminium centre frame carbon fibre surface, compact and portable.

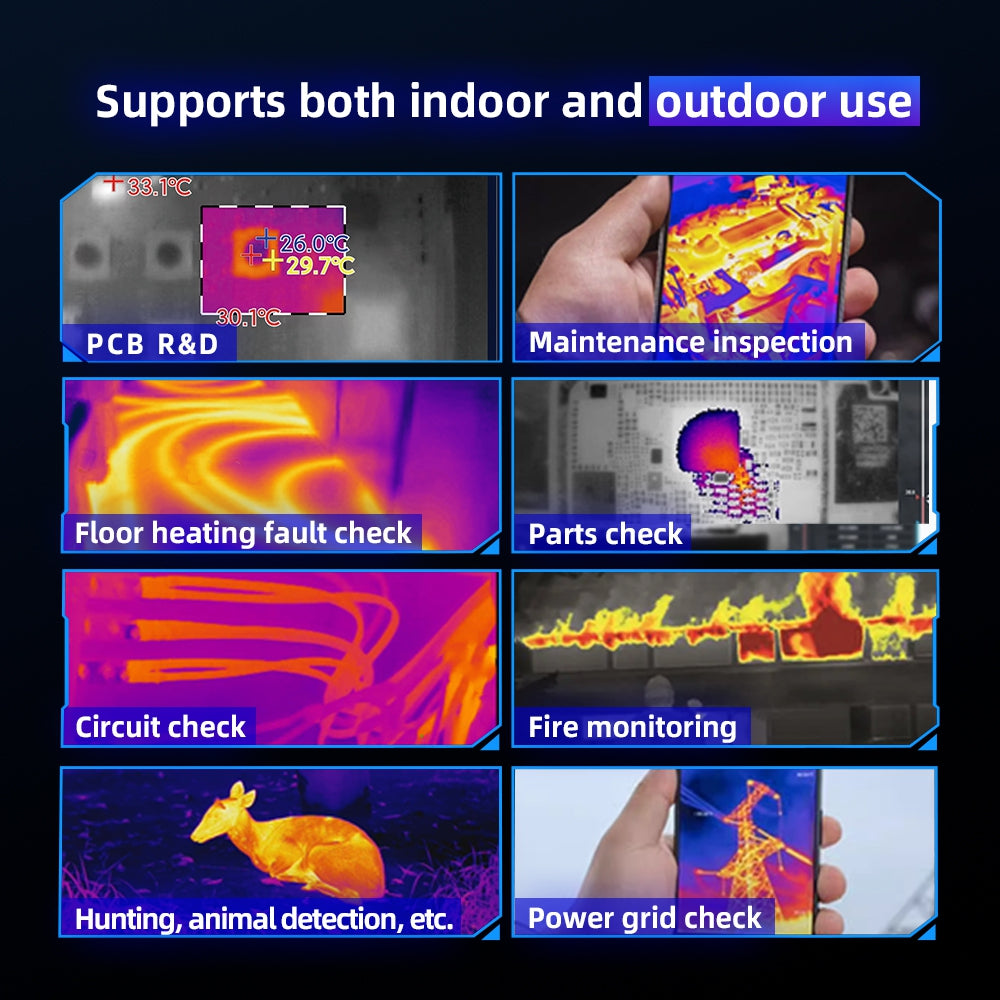

- Customized 80-180mm focal length range, designed for mobile phone motherboard repair, scientific research testing, PCB development and optimization, and another temperature adjustment in close range.

- A pocket thermal imaging camera compact design to free maintenance testing from site and equipment constraints.

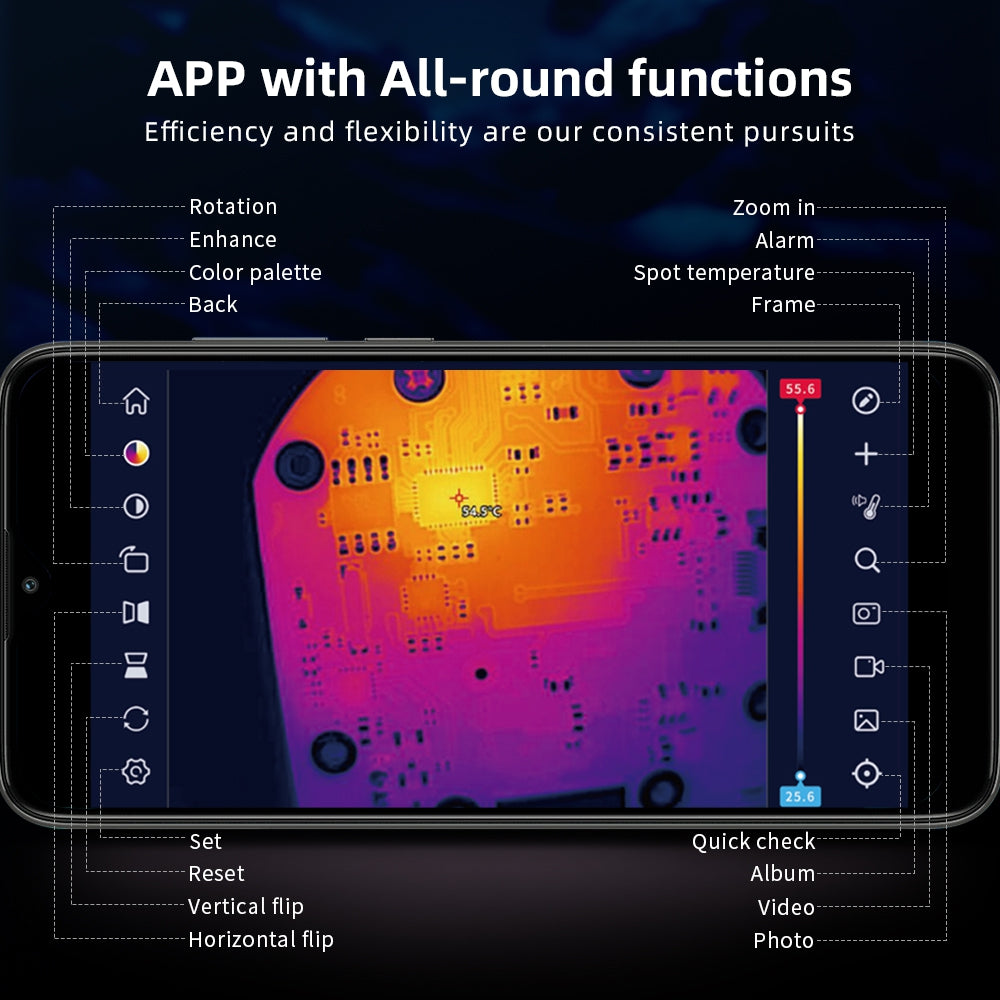

- App has a full range of functions, comparable to software on the PC end, efficient and flexible.

- Temperature range adjustment, quickly locate the high-temperature defects.- High temperature QUICK check and Locate.

- Customized regional temperature measurement.- High-Temperature Alarm.- Multiple colour display modes.

- Temperature measurement: support high and low-temperature auto tracking, points, regional and lines temperature measurement, and temperature range check.

- Center cross: Iron, white hot, black hot, rainbow, red heat, cold blue.- Photos and videos: support photo taking and video recording, photos scan and playback.

Parameters:

Focal Length: 80-180mm

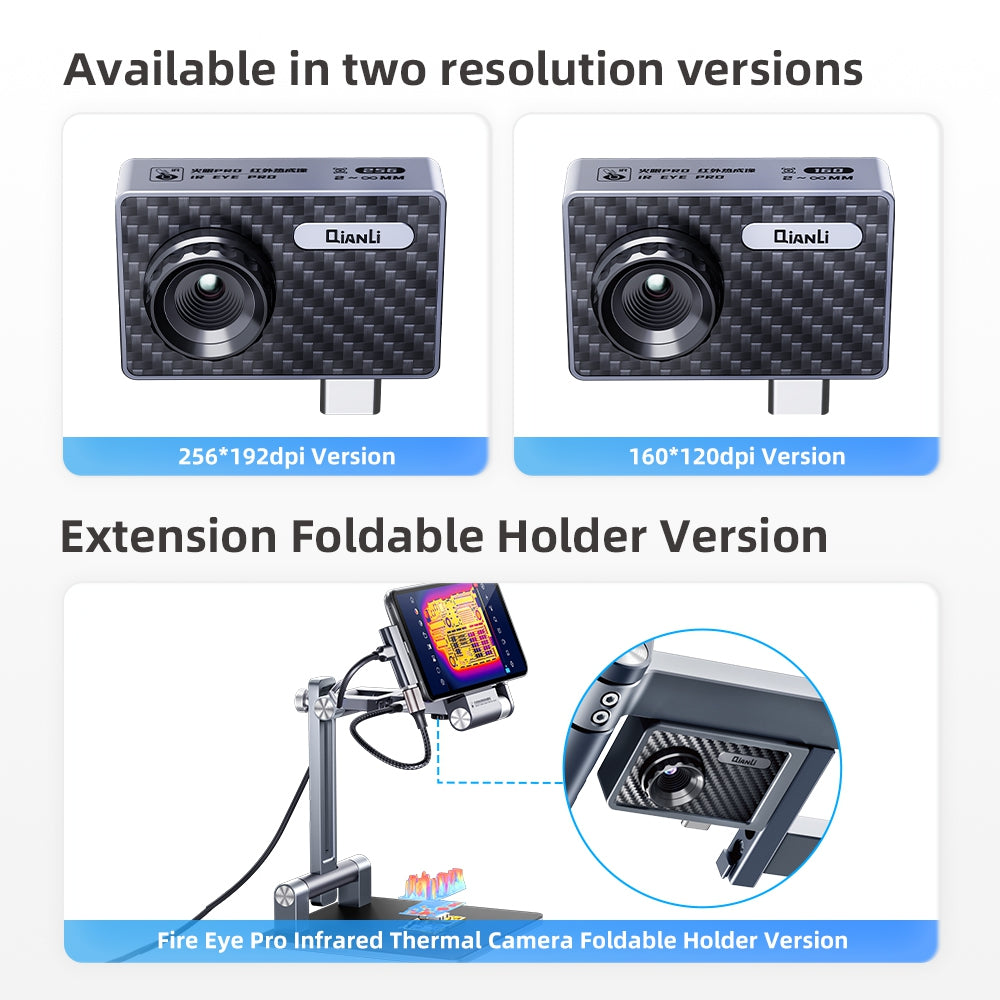

Resolution: 256x192

Frame rate: 25Hz

Temperature measurement range: -20℃-120℃

Shell material: Aluminium, carbon fibre

Connector: Android Type-C

Lens: 3.2mm

Fire Eye Thermal Camera app: WWW.QIANLI.CN

Usage:

1.Temperature range adjustment.By adjusting the temperature range on the temperature bar on the right side of the screen, quickly highlight the required temperature range.

2.High temperature QUICK checks and Locate.Under this mode, the high-temperature region is displayed in the current colour palette and the other regions are white hot.The temperature range can be adjusted via the slider on the right side of the colour palette bar to quickly locate high temperatures.

3.Customized regional temperature measurement.Click on the "Regional Temperature Measurement" button on the right side to add points, straight lines and rectangular boxes to the video for temperature measurement, the straight line and rectangular box will show the real-time maximum and minimum temperatures for the displayed region. A longpress on each added area will bring up the deleted icon, click on the icon to delete, high-temperature abnormalities, and the palette bar to quickly locate high-temperature abnormalities.

4. High-TemperatureAlarm.Real-time attention to the screen is not required, the set temperature is automatically alerted.Click the switch icon of "High-Temperature Alarm", and a window for setting the high-temperature threshold value pops up on the interface.When the maximum temperature value in the screen is higher than the alarm threshold value(in the regional temperature measurement mode, the temperature in the region is taken as the benchmark, except for point measurement), the system will sound an alarm, and then the video screen will flash a red alarm.

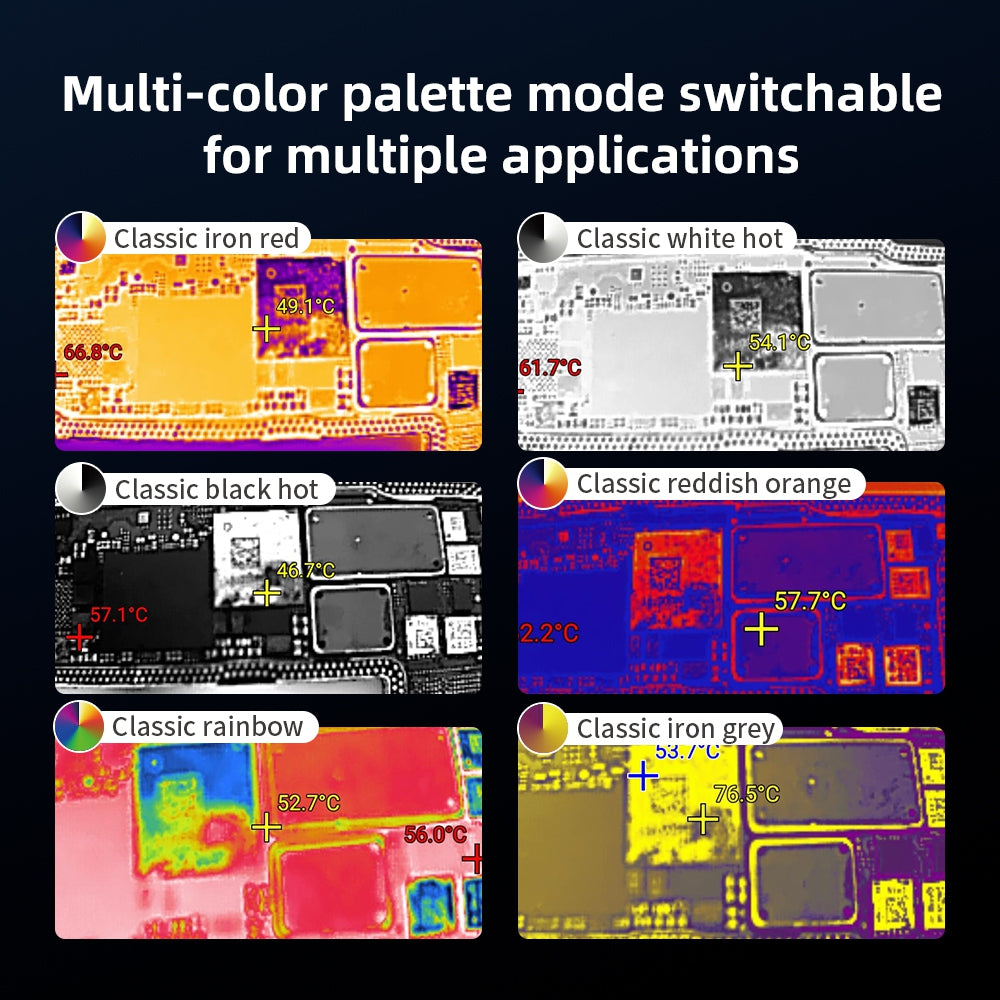

5.Multiple colour display modes.Switch between different colour palettes depending on the application of 6 different colour palettes.

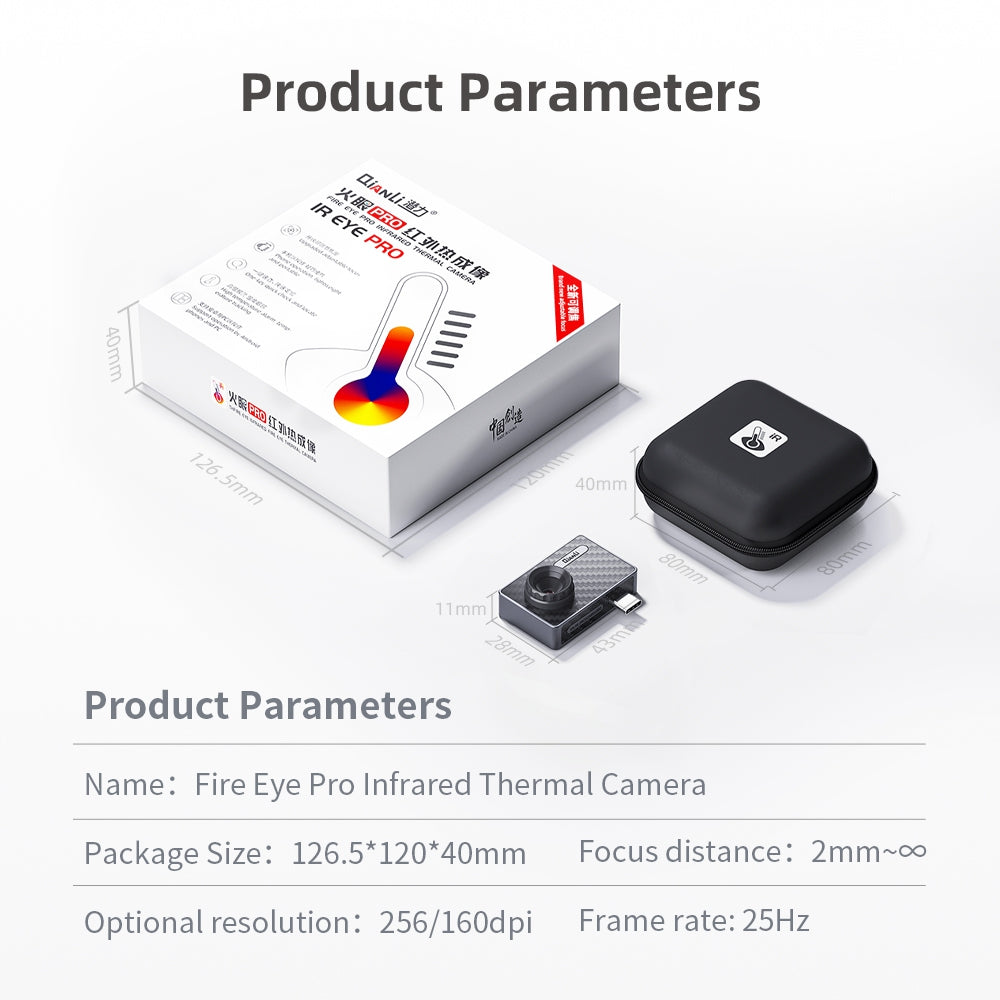

Package Included: Fire Eye Thermal Imager*1,User Manual*1,Bag*1,Lens Cleaning Cloth*1

Package Included

Fire Eye Pro infrared thermal camera*1, User Manual*1, Bag*1
